TOPINCN HT201 Passive Attenuator Attenuation for Oscilloscope Attenuation
Key Features
Product Description

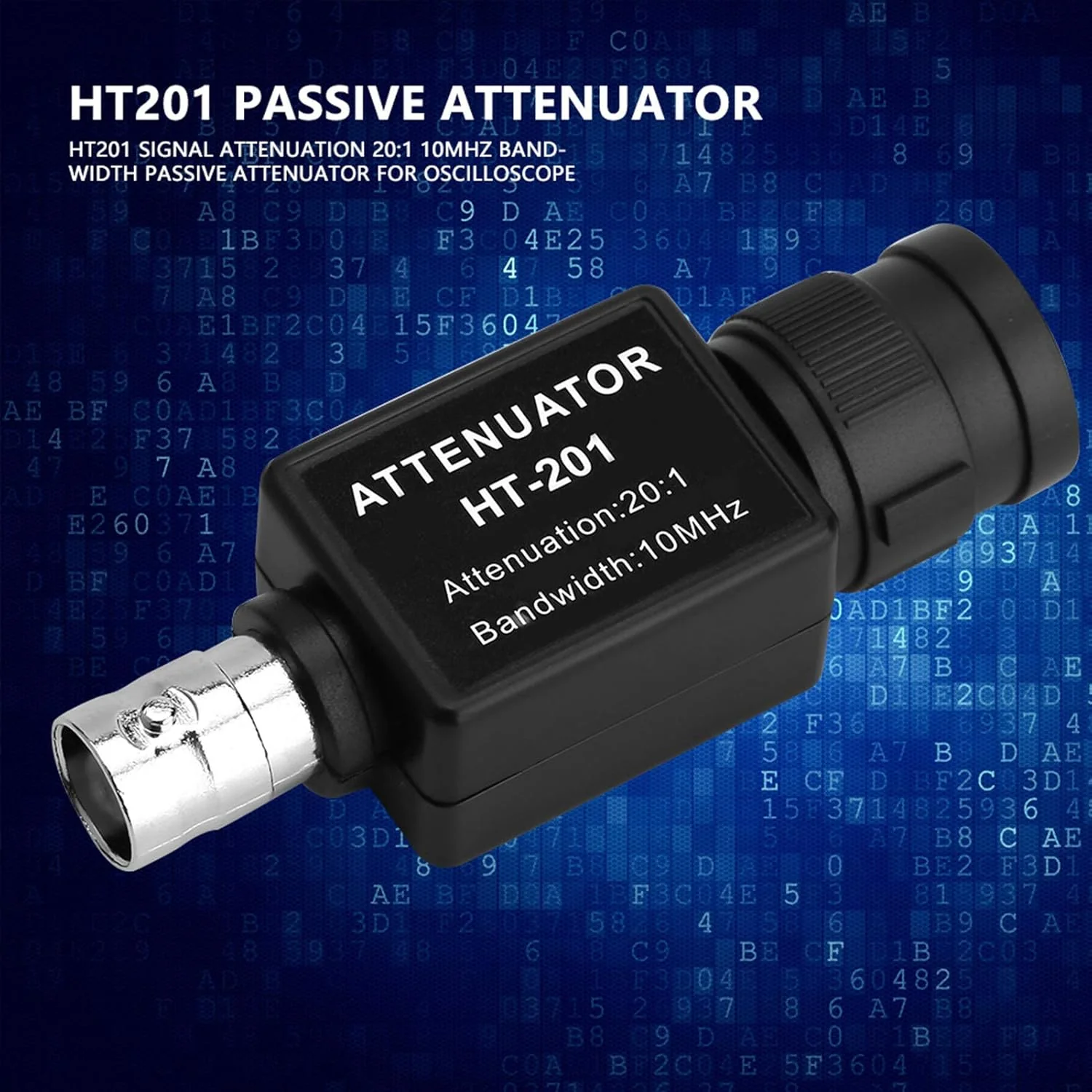

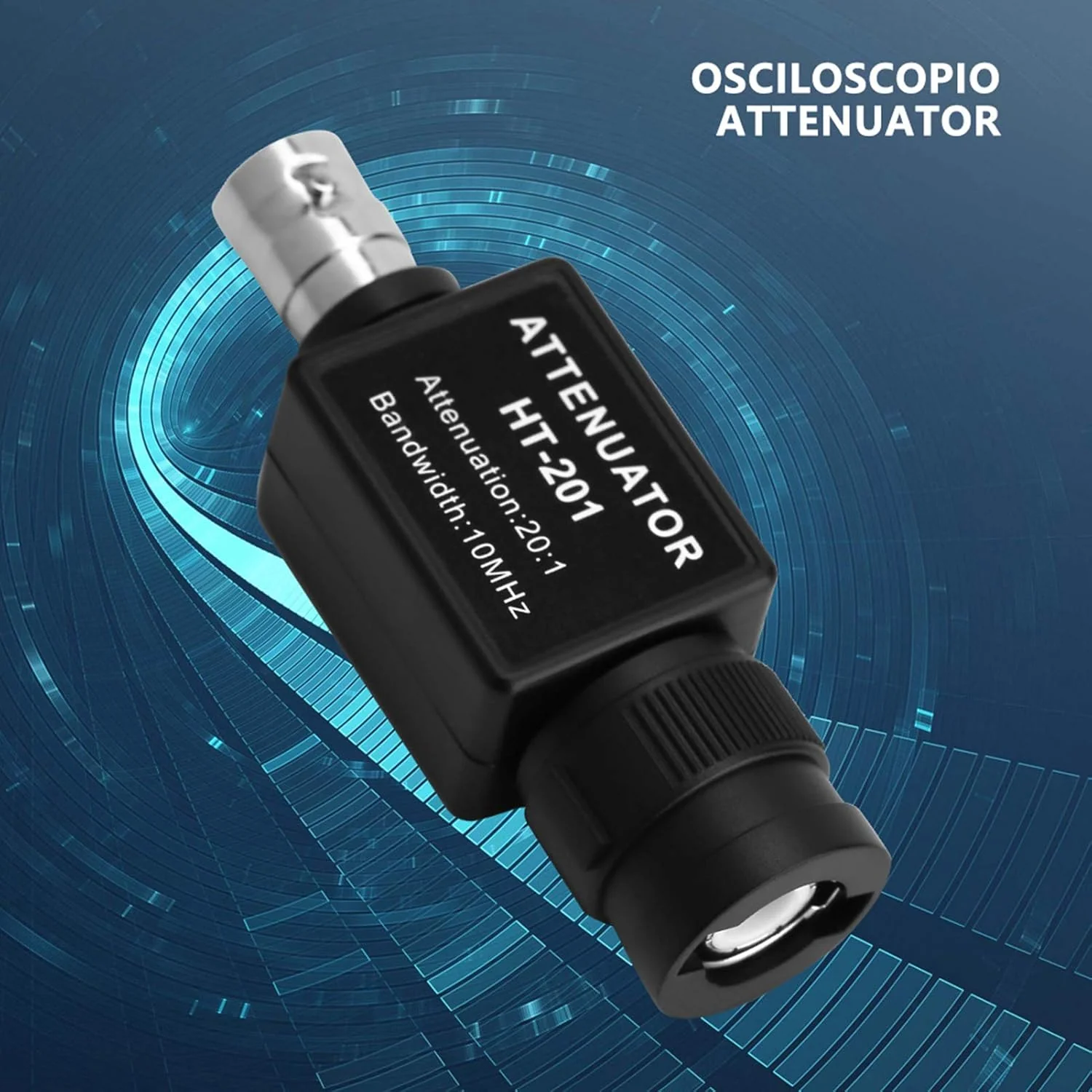

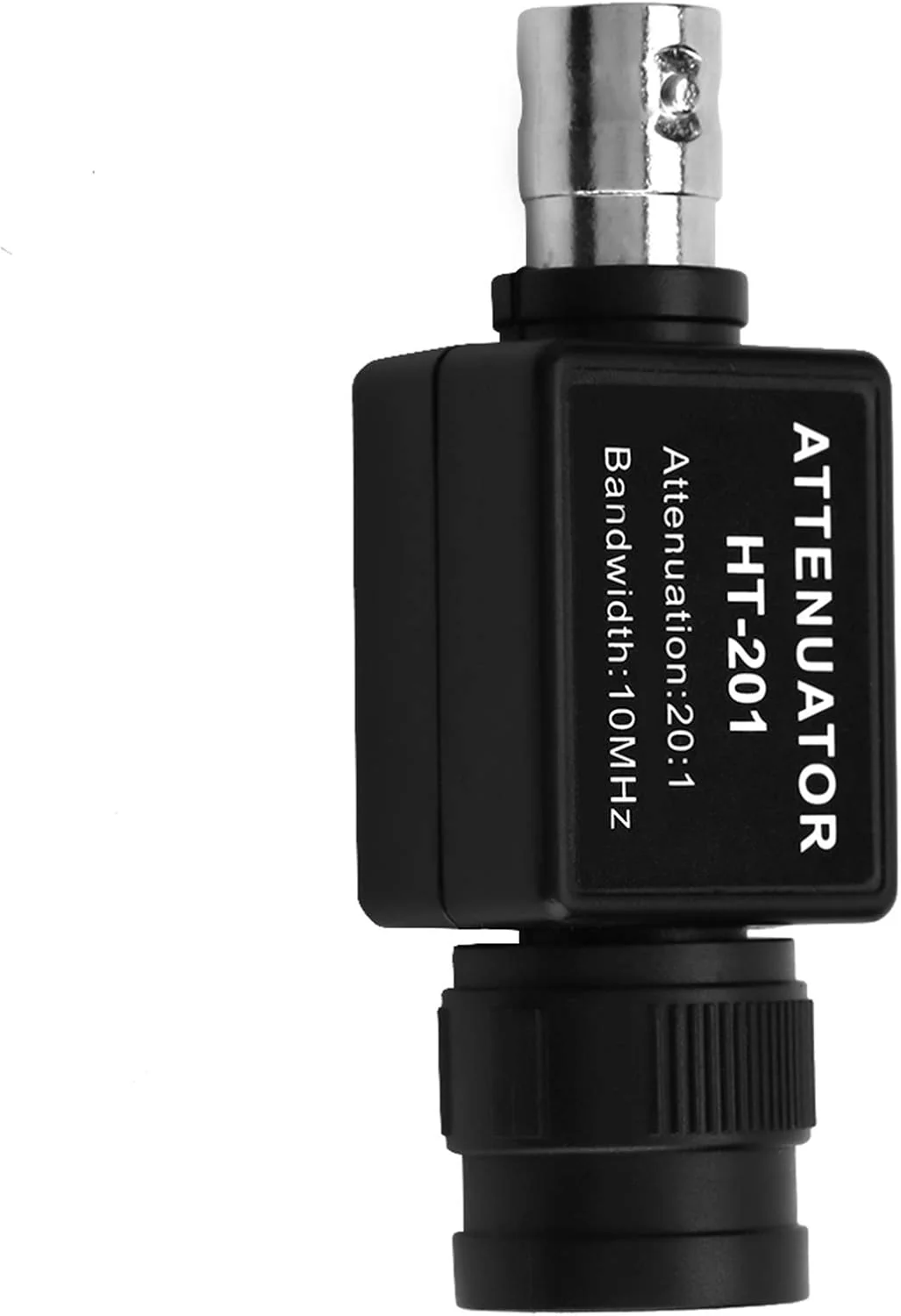

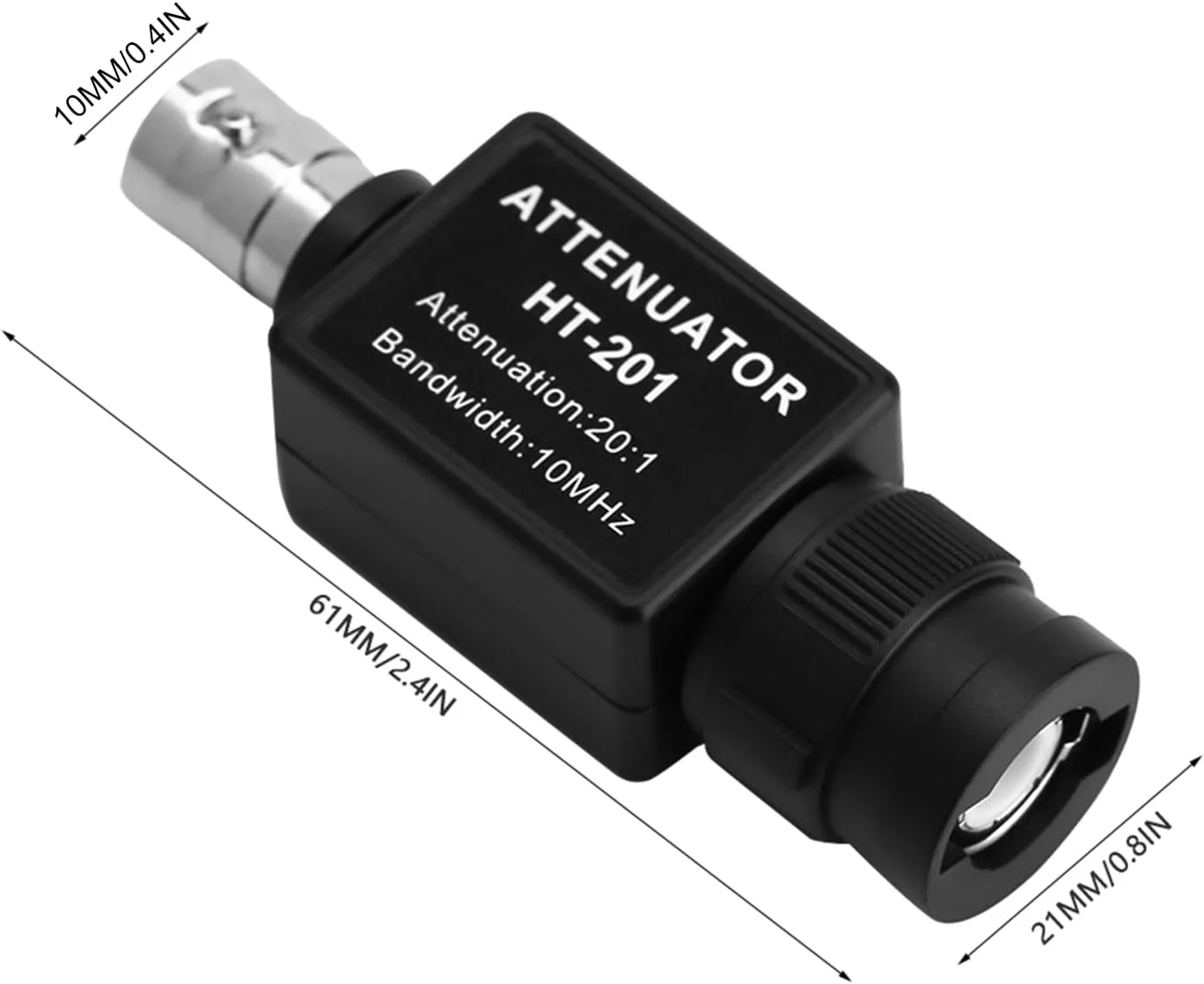

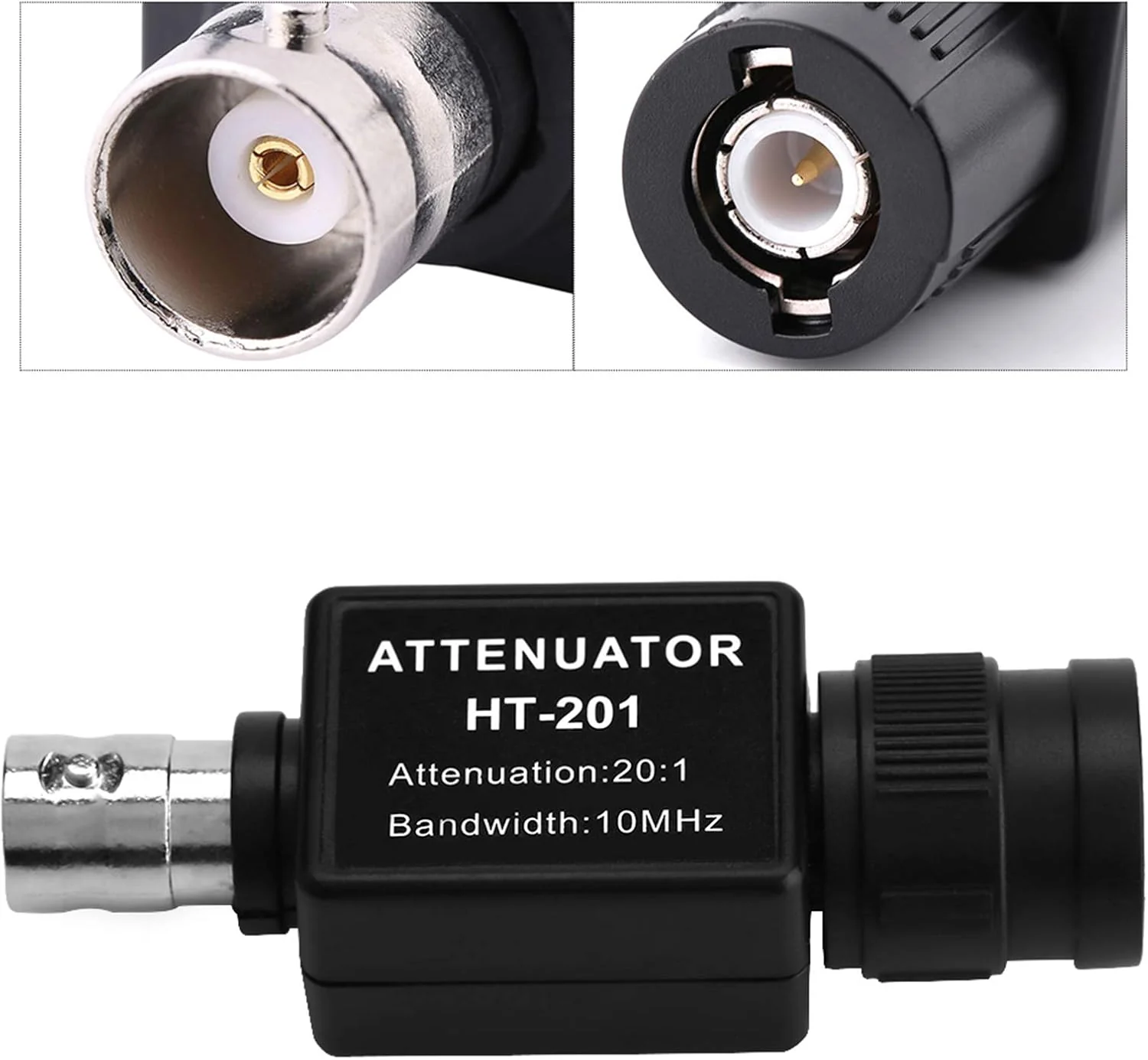

The TOPINCN HT201 Passive Attenuator is a practical and reliable accessory designed to extend the measurement capabilities of your oscilloscope, especially in demanding automotive environments. With a 20:1 attenuation ratio and a 10 MHz bandwidth, this compact device allows you to safely and accurately measure higher voltage signals that would otherwise exceed the input limits of standard oscilloscopes. Engineered specifically with automotive diagnostics in mind, the HT201 enables precise measurement of fuel injector and primary ignition waveforms. By reducing the signal amplitude before it reaches the scope, it helps protect your equipment from damage while preserving the integrity and shape of the waveform. This makes it ideal for professional technicians, automotive engineers, and enthusiasts who need to analyze complex signals in modern vehicle systems. The passive design of the HT201 means it does not require any external power; simply connect it in line with your oscilloscope probe and you are ready to measure. Its 10 MHz bandwidth supports a wide range of applications, from ignition and injection signals to other medium-frequency electronic systems found in vehicles and industrial equipment. Built with durability and stability in mind, the HT201 offers consistent attenuation performance and dependable operation in workshop and field environments. The robust construction and quality components help ensure long-term reliability and accurate, repeatable measurements. By integrating the TOPINCN HT201 Passive Attenuator into your diagnostic toolkit, you gain the confidence to work with higher voltage and fast-changing signals without compromising your oscilloscope. Whether you are troubleshooting ignition problems, optimizing fuel injection, or validating electronic control systems, the HT201 provides a simple, effective, and affordable way to expand your measurement range and improve diagnostic precision.
Product Specifications
| Item model number | TOPINCN7gbg3pqweo |
|---|---|
| Customer Reviews | 4.8 4.8 out of 5 stars (57) 4.8 out of 5 stars |
| Best Sellers Rank | #480,022 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #77 in Oscilloscope Accessories |
| Batteries required | No |
Customer Reviews
This TOPINCN HT201 passive attenuator works perfectly with my oscilloscope and gives a clean 20 to 1 attenuation just as advertised
The 10MHz bandwidth is more than enough for my hobby electronics projects and the signal remains stable and accurate
I like how easy it is to connect this attenuator and immediately reduce signal amplitude without noticeable distortion
For the price this attenuator is a great value and has become a permanent part of my test bench setup
The build quality feels solid and reliable and it handles my higher voltage measurements safely and consistently
